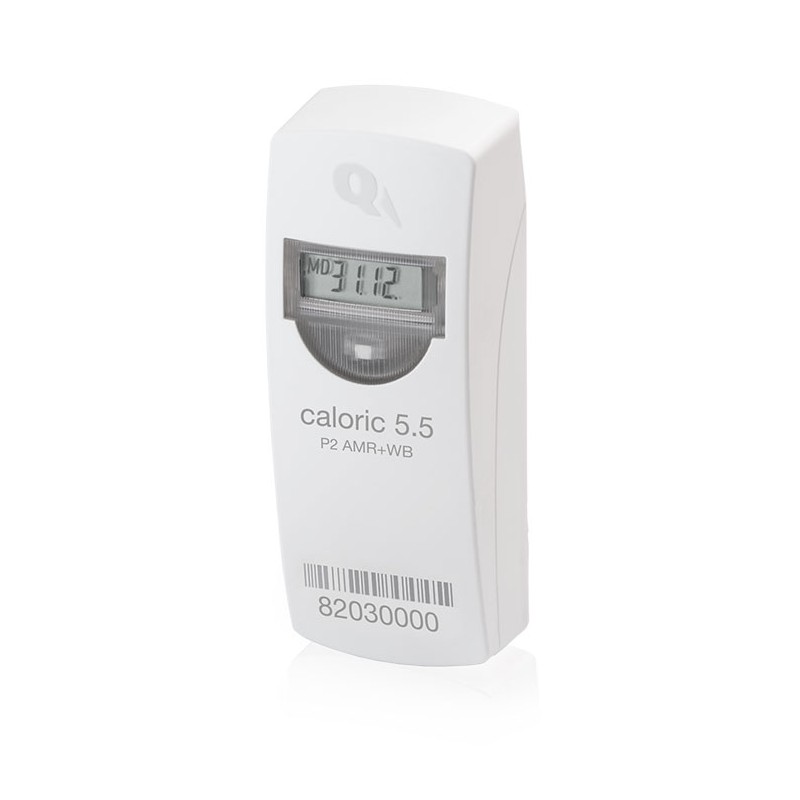

Q caloric 5.5 opto - 1 sensor

32,11 €

Heat cost allocators

1-sensor measuring principle

Metering technology compatible with Q caloric 5, 201S and 202S/K, mixed operation is permitted.

Quantità

La quantità minima ordinabile per questo prodotto è 50.

  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

The heat cost allocators listed below are for installation in new systems (no attachment parts available on the radiator), for standard exchange in systems with existing QUNDIS devices Q caloric 5, 201 and 202 (attachment parts available on the radiator) and for conversion installation in systems with external brands e.g. evaporator (attachment parts partly available).

EN 834-conform one-sensor or two-sensor heat cost allocator, storing of annual values with checksum, electromechanical contact for detecting device opening (e.g. in the case of manipulation), programmable due date and seal already pre-mounted in the housing, for average temperatures ranges from 55 °C or 35 °C to 110 °C, prepared for the installation of a remote sensor, retrofitting can be done at any time on site.
Standard version:
Due date 31.12., battery warning off / opening detection in plain text /  no summer switch-off - yet prepared, urther parameter setting options are possible on request or can be activated directly on site / can be changed using software Q suite

Qundis GmbH
Q opto (infrared-interface)
