G 03 – nominal flow rate 10.0 m³/h, temperature sensor 6.0 x 60 mm universal
799,14 €
G 03 – nominal flow rate 10.0 m³/h, temperature sensor 6.0 x 60 mm universal
Standard

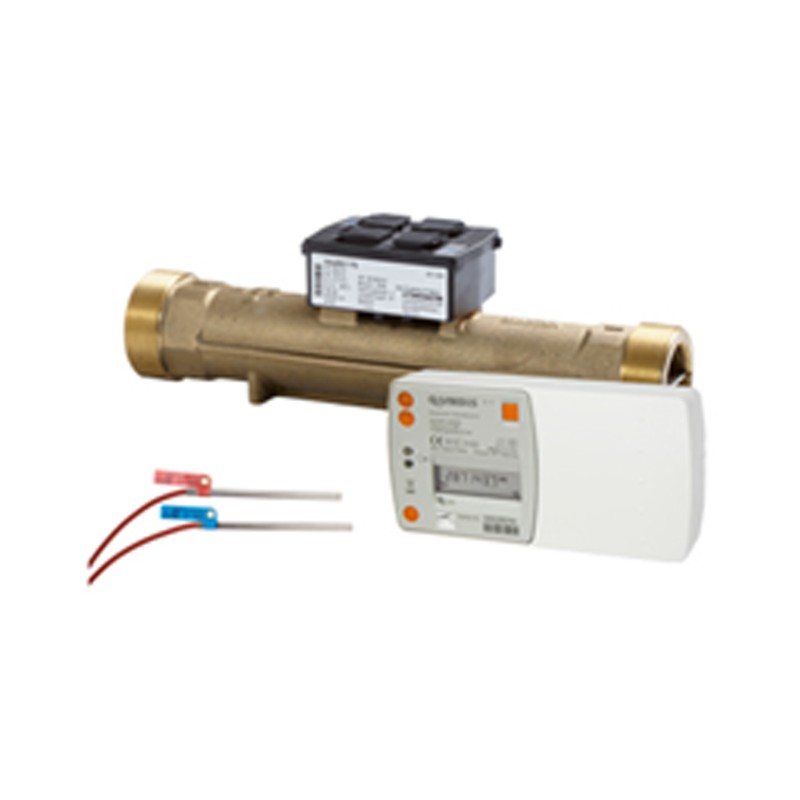

MID-compliant split heat meter G 03 consisting of:
calculator unit with optical interface for programming / readout and for retrofitting of
external communication modules, MID-compliant pair of temperature sensors PT 1000
- for dimensions see below with 3 m cable, direct measurement up to nominal flow of
6.0 m³/h, ultrasonic flow sensor with thread connections and a dynamic ratio of 1:100
for any required installation position, up to and including a nominal flow of 10.0 m³/h
with 5.6 mm sensor bore hole, operating pressure PN16 bar, approved medium
temperature 130° C up to Qp 2.5 and 150° C from Qp 3.5
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
G 03 – nominal flow rate 10.0 m³/h, temperature sensor 6.0 x 60 mm universal
Standard
MID-compliant split heat meter G 03 consisting of:
calculator unit with optical interface for programming / readout and for retrofitting of
external communication modules, MID-compliant pair of temperature sensors PT 1000
- for dimensions see below with 3 m cable, direct measurement up to nominal flow of
6.0 m³/h, ultrasonic flow sensor with thread connections and a dynamic ratio of 1:100
for any required installation position, up to and including a nominal flow of 10.0 m³/h
with 5.6 mm sensor bore hole, operating pressure PN16 bar, approved medium
temperature 130° C up to Qp 2.5 and 150° C from Qp 3.5
