G 04 – nominal flow rate 3.5 m³/h, temperature sensor 6.0 x 60 mm universal (for existing installations)
814,08 €
G 04 – nominal flow rate 3.5 m³/h, temperature sensor 6.0 x 60 mm universal (for existing installations)

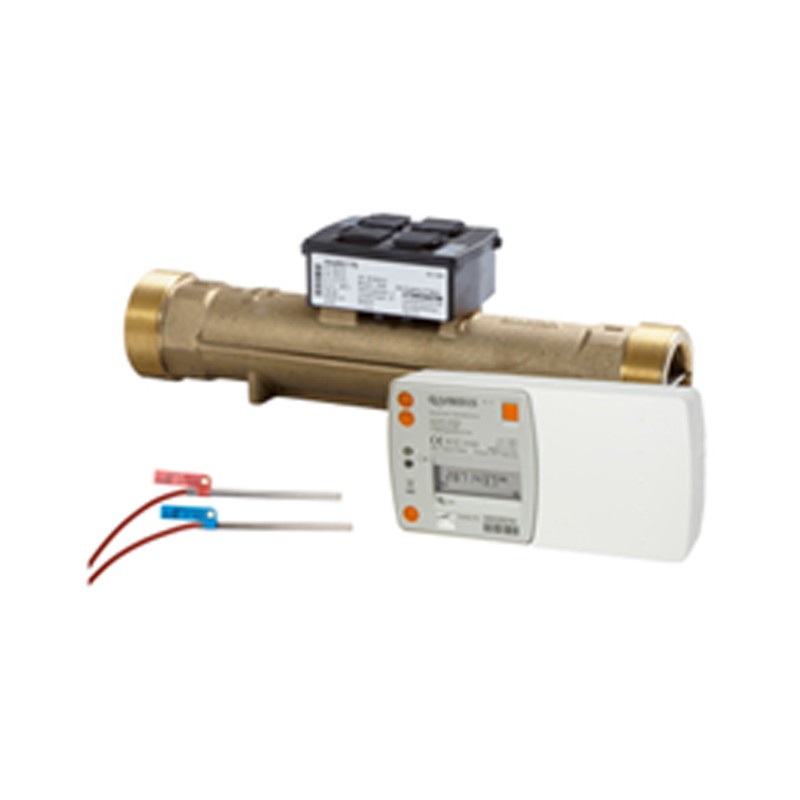

MID-compliant split heat meter G 04 consisting of:
calculator unit with optical interface for programming / readout and for retrofitting of
external communication modules, MID-compliant pair of temperature sensors PT 1000
- for dimensions see below with 3 m cable, direct measurement up to nominal flow of
6.0 m³/h, ultrasonic flow sensor with flange connections and a dynamic ratio of 1:100
for any required installation position, up to and including a nominal flow of 10.0 m³/h
with 5.6 mm sensor bore hole, operating pressure PN25 bar, approved medium
temperature 150°C, display of annual value with check number, programmable
scheduled date, parameterisation possible via operating key and adapter
Politiche per la sicurezza
(modificale nel modulo Rassicurazioni cliente)
Politiche per le spedizioni
(modificale nel modulo Rassicurazioni cliente)
Politiche per i resi
(modificale nel modulo Rassicurazioni cliente)
G 04 – nominal flow rate 3.5 m³/h, temperature sensor 6.0 x 60 mm universal (for existing installations)
MID-compliant split heat meter G 04 consisting of:
calculator unit with optical interface for programming / readout and for retrofitting of
external communication modules, MID-compliant pair of temperature sensors PT 1000
- for dimensions see below with 3 m cable, direct measurement up to nominal flow of
6.0 m³/h, ultrasonic flow sensor with flange connections and a dynamic ratio of 1:100
for any required installation position, up to and including a nominal flow of 10.0 m³/h
with 5.6 mm sensor bore hole, operating pressure PN25 bar, approved medium
temperature 150°C, display of annual value with check number, programmable
scheduled date, parameterisation possible via operating key and adapter
